75 Inch Dual System Smart Board Touch Screen IR Interactive
Whiteboard
Quick details:
1. 75inch UHD resolution of 3840-*2160 4k resolution
2. Dual system inbuilt, Andorid 6.0 and OPS plug and play Windows
system,I3/I5/I7 CPU
3. Movable stand on option, with wall-mount bracket
4. Support 20-point muti touch screen in Windows system
5. Tempered glass with Anti-glare glass on option
6. Smart pen and projection screen function support
7. Camera with microphone on option
8. Multable interface available,RS232*1, YPBPR in*1,HDMI in*2, RJ45*2, Touch USB*1, VGA in*1, VGA
audio in*1, SD card*1, MIC in*1, USB3.0*2, AV in*1, RF-IN*1, SPDIF
out*1, Earphone*1, AV out*1, VGA out*1
9. Ready stock can ship very fast
10. Hard carton packing, can be put into container directly
11. English version education teaching software for free
Description:
Compared with traditional multimedia classroom solutions, the
integrated smart touch and Bluetooth wireless amplification system
fully reflects the advanced nature of the entire system in terms of
access methods and system control.
Hot sale size is from 55inch to 86inch, 100inch is also on sale,
but large demand is from 65inch to 86inch, When apply in
School,front tempered glass can be anti-glare type, so study
sitting on left and right side also can enjoy the screen quite
easily and see content on the screen clearly.
Resolution is 4K, but the price is very reasonable, we charge the
same as 2K.

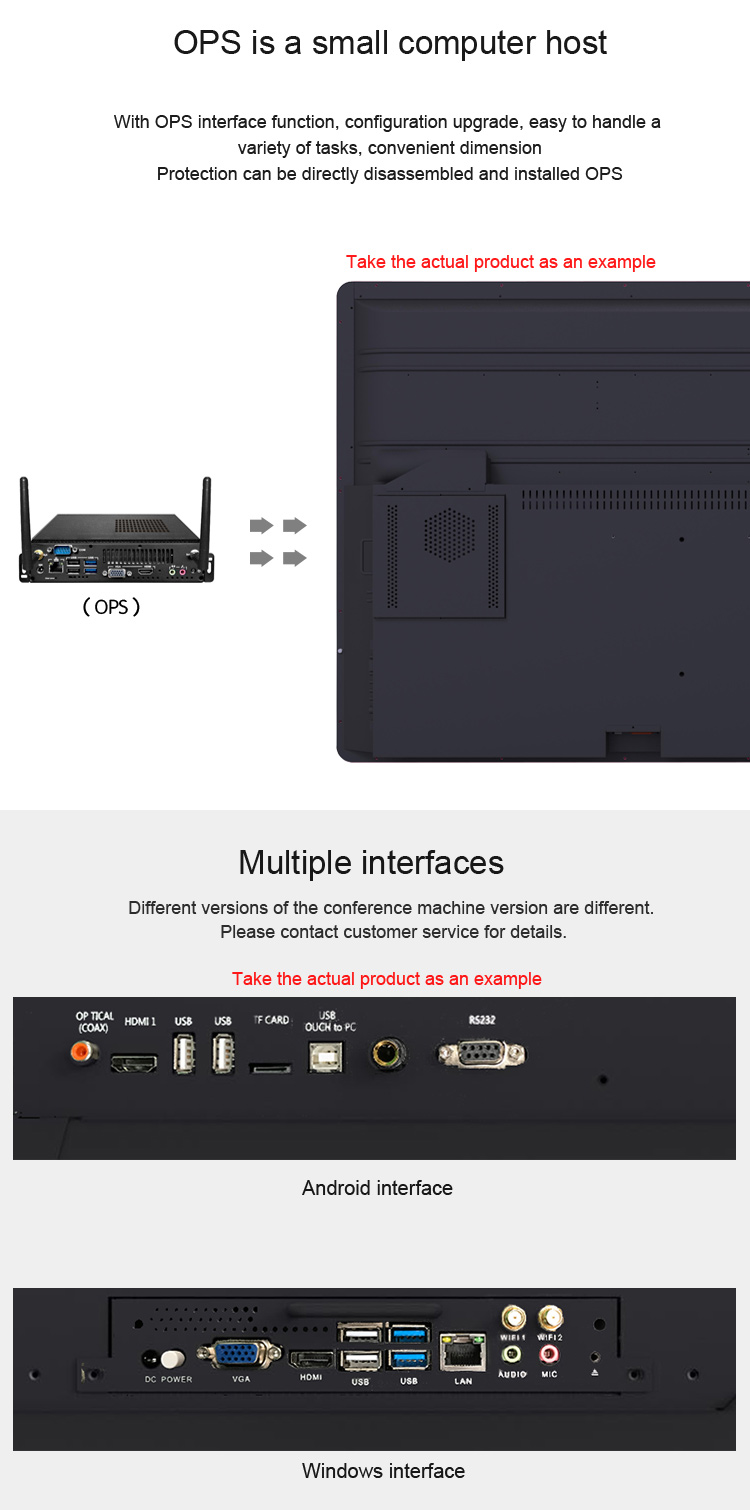

Whiteboard has both Android and OPS Windows system, Android version
can be 6.0, support Google play, OPS spec are various from i3, i5
to i7, memory can be 4G or 8G, SSD can be 128G or 256G, also with
wifi and good signal antenna. OPS support plug and play.
Has HDMI input, if you connect the screen with a TV set top box,
the screen then become to be a big home TV, and if you connect to
your own computer or other media player box, then you can share
content from them also. Besides, projection screen is the basic
function for meeting whiteboard, we have the little component on
sale, also smart pen is on option, you can use the long smart pen
to point and operation, no need use your fingers all the time.
The standard model that is come with wall mount bracket for
mounting the interactive touch screen whiteboard on wall.
You can choose add the Movable floor stand has wheels on the base,
also stand height can be adjustable as you want.
Camera can be installed on the top and be outside, also it has
microphone and 2*10W speaker.Inbult camera also can be done.
Teachers can use handwriting to make courseware that is a mixture
of handwritten text and graphics. This input method conforms to the
teacher's handwriting habits and greatly saves lesson preparation
time.
Specification:
| Scren size | 75inch |
| Active Display Area | 1430.5*805.5mm |
| Aspect Ratio | 16:9 |
| Visual Angle | Horizontal178/Vertical178 |
| Panel | Original LGD/SDC/BOE/AUO A Level |
| Brightness | 350cd/m2 |
| Contract Ratio | 4000:1 |
| Resolution Ratio | 3840*2160 |
| Color Components | 16.7M |
| Response Time | 10ms |
| Power Consumption | 250W |
| Standby power consumption | ≤1W |
| Touch | IR 10-point touch screen |
| Power Supply | Input:AC110-240V-50/60Hz |
| Material | Metal and 4mm thickness tempered glass |
| Color of Shell | Black |
| Life of Panel | 60000Hours |
| Dimension of Machine | 1520.5×942.5×130.2mm |
| Carton box packing | 1730×270×1075mm, N.W./G.W.: 69/77kg |
| Photo formats | JPEG ,BMP ,GIF ,PNG |
| Audio formats | MP3,WAV,WMA |
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, |
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic |
| Speaker | 2*10W |
| Working Temperature | -10℃-50℃ |
| Storage Temperature | -20℃-60℃ |
| Accessory | Power Cable, English Manual, IR Remote Controller, Touch Pen |
| Android Mainboard Configuration |
| CPU | Cortex A53*4 1.4GHz |
| GPU | Mali450MP4 (4+2) 600MHz |
| RAM | DDR3 2G |
| Memory | 32G |
| OS | Android 5.0 |
| SD card | Support MAX 128GB SD card |
| Front port Configuration |
| Port | USB2.0*2 HDMI in*1, USB touch*1 |
| Input/output port Configuration |
| Port | RS232*1, YPBPR in*1,HDMI in*2, RJ45*2, Touch USB*1, VGA in*1, VGA
audio in*1, SD card*1, MIC in*1, USB3.0*2, AV in*1, RF-IN*1, SPDIF
out*1, Earphone*1, AV out*1, VGA out*1 |
| OPS Configuration |
| CPU | i3, i5, i7 |
| Memory | DDR3 4G, 8G |
| SSD | 128G, 512G |
| OS | Beta Windows7/10 |
| Port | HDMI in*1, VGA in*1, USB2.0*2, USB3.0*2, RJ45*1, Audio out*1,
Mic-in*1 |
Application:
Hospitcal, museum, exhibition, restraint, office, meeting room,
conference room, schoool, kindergarten
Tag:smart touch screen kiosk,interactive touch screen smart board
