Entrance Access Control System LCD 8" Android Wifi Thermoscanner
Device EU Digital Covid 19 Certificate QR Code Scanner Smart Pass
LCD Screen Digital Signage
Quick points smart pass lcd screen :
1. 8inch IPS panel with resolution of 1280*800
2. Android 7.1 system inbuilt, with 2G RAM and 8G memory
3. CNC industrial grade aluminum shell with fast heat ventilation
4. Binocular dynamic camera inbuilt
5. QR code scanner inbuilt
6. IR temperature sensor inbuilt, can work at light with LED
compensation light function
7. Support 30,000 face record saved, 97% 1:1 face comparison
8. Abnormal temperature alarm, mask wearing warning, detect face
while wearing mask
9. IC card reader inbuilt, for comparing face, entrance guard
access control, attendance, check in and check out
10. QR code scanner inbuilt
11. Wigan in and out, input IC card numher and output the same card
number for check in and check out
12. Software to be provided for free
Description privacy protection EUDCC scaner fever alarm thermo
scanner:
"Temperature measurement + face + swipe card + two-dimensional
code", a new generation of face recognition management module,
high-performance core processor supports the selection of Ruixin
micro rk3288 four core processor, Ruixin micro rk3399 six core
processor and Qualcomm msm8953 eight core processor, with strong
performance.
Industrial grade all aluminum alloy CNC shell, dozens of processes,
efficient heat conduction, fan free design, IPS full view LCD
high-definition display, industrial wide dynamic binocular camera,
built-in dynamic dual camera, anti-counterfeiting, night infrared,
led dual compensation.
It supports 30000 face database, the recognition rate of 1:1
comparison is more than 99.7%, the recognition rate of 1:n
comparison is more than 96.7% @ 0.1% of false recognition rate, and
the accuracy rate of live detection is 98.3% @ 1% error rejection
rate. The speed of face recognition is less than 1 second.
It can effectively detect and judge whether visitors are wearing
masks, give voice warning to those who don't wear masks, and
support accurate face recognition comparison when wearing masks.
Non contact rapid temperature screening, the best temperature
detection distance is 0.5 m, the farthest is 1 m, and the
temperature measurement accuracy is 0.2 degrees. It supports
automatic alarm of abnormal body temperature, second level
detection speed, and real-time export of attendance temperature
measurement data.
Email address can be sent in software, send auto email for abnormal
temperature
It supports the accurate identification of IC card, realizes the
functions of person card comparison, card access control, clock in
attendance, and rapid temperature screening, etc. the personnel
without photos in the background can swipe the card by binding the
IC card number for temperature screening, and pass when the body
temperature is normal.
It supports quick scanning identification of one-dimensional code,
stacked two-dimensional code, matrix two-dimensional code and
postal code. It is mainly used in intelligent visitor management.
It supports inputting visitor information in advance in DC MIPS
cloud smart access, and generates time-effective two-dimensional
code. Visitors can conduct identity verification and rapid
temperature screening with the QR code. This function can be widely
used in confidential units, enterprises, schools, parks and other
visitor management
Built in dual channel speaker, support TTS voice broadcast,
real-time intelligent text into natural voice stream, voice
broadcast, voice reminder.

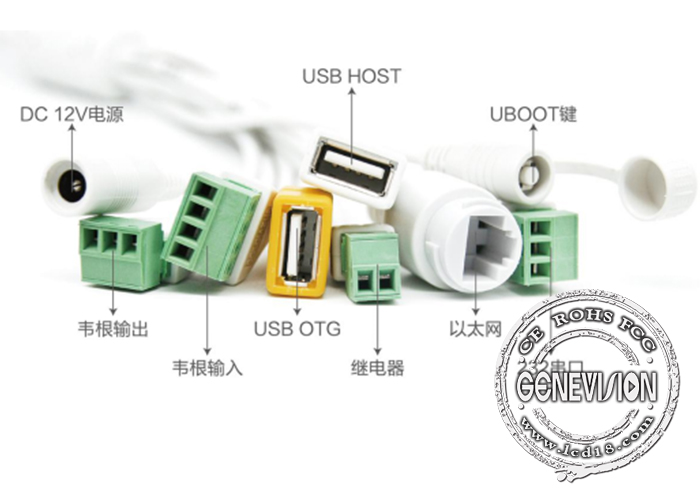

It supports USB host, USB OTG, Wigan 26 / 34 I / O, RS232, relay,
RJ45, Ethernet and other interfaces, and supports the expansion of
ID card reader, fingerprint detector and other peripherals.
Support for secondary development of APP + web, support of app,
secondary system, etc.
Provide professional management platform, including traffic
management app, LAN version of traffic management software and DC
MIPS cloud intelligent access, fully cover the traffic management
requirements of various scenarios, and support the rapid and
efficient customization of app and management background according
to the actual needs of customers.
For installation, it can be with table stand, 1.1M/1.2M adult floor
stand, 0.6M floor stand for children use. Also auto hand sanitizer
dispenser can be attached onto floor stand as well.
Specification of high temperature alarm smart pass LCD screen with
camera:
| Resolution | 1280*800 IPS panel |
| Display area | 107.64(W)×172.224(H) mm |
| Brightness | 200cd/m2 |
| Number of Color | 16.7M |
| Response time | 8 (ms) approximately |
| Contrast | 800:1 |
| View angle | 170°/170°(H/V) |
| Life Time | > 50000 (hours) |
| Power Supply | DC12V (±10%) |
| Power Consumption | 14W |
| Camera | 2.0Mpx, two-eye dynammic camera |
| Focus distance | 50-150cm |
| White balance | Automatic |
| LED flash | LED and dual IR LED light compensation |
| Speaker | 2.5W/4R |
| Face recognition | Support several face detection together |
| Face recording database | 30,000 at most |
| 1:N face detection | Suport |
| 1:1 face matching | Suport |
| Stranger dection | Suport |
| Face detection distance configuration | Support |
| UI interface configuration | Support |
| Remote upgrade | Support |
| Display interface | Includes device management, personnel/picture management, records
query |
| Deployment model | Support public cloud, private, local area network, standalone |
| Body temperature testing | Support |
| Distance support | 1 Meter |
| Testing precision | ≤ ±0.2℃ |
| Testing range | 10℃~42℃ |
| Thermal imaging field of view | 32 X 32℃ |
| Automatic pass | Support, for normal body temperature |
| Automatic alarm | Support, for abnormal body temperature, can be pre set |
| Waterproof | IP65 |
| Installation | Gate machine, height can be adjusted |
| Photo Formats | JPEG ,BMP ,GIF ,PNG |
| Audio Formats | MP3,WAV,WMA |
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V |
| Shell Material | Aluminum+Metal |
| Bare diemension | 238.24*128*25mm, N.W.: 1.45kg |
| Touch Type | NO |
| Normal Working Temperature | -10°——60° |
| Normal Storage Temperature | -20°——60° |
| Accessory | Cable, bracket |
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic |
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz |
| RAM | DDR3 2G |
| Memory | 8G |
| Internet connetcion | Wifi, RJ45 |
| System | Android7.1 |
| USB port | OTG*1, USB HOST*1 |
| RS232 | 1 |
| Relay output | 1 signal output for door openning |
| Wiggins interface | 26/34 output*1, 26/34 input |
| Upgrade | Support Uboot upgrade |
| 1. Use 8Inch IPS LCD screen with full viewing angle |
| 2. Industrial grade, waterproof, dust free design, high end, steady
and reliable quality |
| 3. Support face recording database of 30,000. 1:1 face matching
rate at more than 99.7%, 1:N face matching rate at more than
96.7%@0.1% FAR( False Accept Rate), Bio-assay detection accuracy
rate at 98.3%@0.1% FAR, face detection and pass needs less than 1s |
| 4. Support face accurate detection and matching when people wearing
mask |
| 5. Use industrial grade two-eye dynammic camera, with IR technology
for night use, LED light compensation technology |
| 6. Has Rockchip RK3288 Quad-core CPU, RK3399 Six-core CPU, Qualcomm
MSM8953 Octa-core processor on option |
| 7. Support human body temperature detection, temperature display,
long distance detection of more then 1M, 0.2℃ error range, support automatic alarm for abnormal temperature, fast
detection speed at 1s, real time temperature detection data output |
| 8. Support other components embeded like ID card reader, finger
print, IC NFC, QR code scanner |
| 9. Support various API connection for system, APP offline, APP+
background network, support secondary development |
| 10. Can be widely used in school, airport, subway station and train
station, can work together with passage gate entrance access
controller in community, office building, hotel, scenic spot,
transportation junction or other public service area |
Application:
This thermoscanner device can be widely used in office, school,
supermarket, shopping mall, library, museum, cinema, restaurant
etc.
