Android 9.0 OS 48.8 inch Touch Screen 4K 1000nits High Brightness
Ultra Wide Stretched Bar LCD Display
Quick details of Touch Screen Stretched Lcd Display :
1. 48.8inch, 55inch cut 1/3,ultra wide stretched bar lcd display
2. 1000cd/m2 high brightness.
3. 10 point PCAP G+G touch screen.
4. Metal case on back side,aluminum profile on sides and temperared
glass on front
5. Colour:Black or White or Silver optional
6. Resolution 3840*720,with DP port,HDMI input,VGA input,DVI input
7. Android 9.0 OS and Win 10 system optional.
8. Come with bracket for fixing on wall
9. Display content:video,pictures,text,logo,date and time
10. Installation:landscape or portrait hanging
Description of ultra wide Stretched Lcd Display :
Stretched bar display is 1/2 or 1/3 cut from standard 16:9 lcd
screen.It can be cut to any size according to customer
requirements, and the thickness and assembly method of stretched
screen can be adjusted according to customer requirements.
The 48.8inch streteched screen with high brightness 1000nits,the
display effect is quite good.With 4K resolution of 3840*720,support
play 4K content.Can be non touch or with 10 points capacity touch
screen.
The playback effect can be arbitrarily controlled by the software,
and the different resolutions of HD and SD can be rewritten by the
software, stand-alone mode playback, network publishing system mode
playback, single-video single-picture mode playback and
split-screen picture-video mixed mode playback.
Support horizontal and portrait viewing switching, according to the
different functional requirements of customers, a variety of
configurations can be selected.
Most of clients have their own media player,we can make it with
HDMI input without system.Android motherboard or mini PC
motherboard is optional,and come with our content manage software
for remote control it.
Specification of interactive stretched bar display :
We have full range of lcd bar display, various size can be cut
here.
| Panel Specification: |
| Scren size | 48.8inch (55" 1/3 cut) |
| Active Display Area | 1209.6*226.5(V)mm |
| Visual Angle | 178/178 |
| TFT-LCD screen brand | Samsung, LG, AUO, BOE A Level |
| Brightness | 1000cd/m2 |
| Contract Ratio | 1000:1 |
| Resolution Ratio | 3840*720 |
| Color Components | 1.07B |
| Surface treatment | Anti-glare 3H |
| Response Time | 8ms |
| Power Consumption | 70W |
| Power Supply | Input:DC 8-36V, with adaptor |
| Material | Metal and tempered glass |
| Touch screen | 10-point PCAP foil touch |
| Color of Shell | Black |
| Life of Panel | 60000Hours |
| Bare dimension(estimate) | 1249*266*50mm |
| Wooden box size | 1pc/box, 1400*210*400mm, G.W.: 32kg |
| OSD Language | English, Chinese, French, German, Italian, Spanish, Arabic etc. |
| Working Temperature | 0°——50° |
| Storage Temperature | -20°——60° |
| Accessory | Power Cable, IR Remote Controller, Allen key |
| Mainboard Configuration |
| Interface | HDMI in*1, DVI in*1, VGA in*1 |
Also other hot sale size as per below table:
| Size | Model | Brightness (nits), adjustable | Resolution | Displaying area(mm) | Display overall size(mm) |
| 19.5" | Wall mount | 250 ~ 400 | 1920*540 | 476.5*134mm | 521.5*179.5*47.6mm |
| 24" | Wall mount | 200 ~ 400 | 1920*360 | 597.9*111mm | 642*156*46.8mm |
| 28.1" | Wall mount | 200 ~ 400 | 1920*360 | 698*131.5mm | 748*181.4*47.17mm |
| 28.6" | Wall mount | 200 ~ 400 | 1920*540 | 698.4*196.43mm | 748*245.5*45.8mm |
| 34" | Wall mount | 200 ~ 400 | 3440*1440 | 798.5*333.5mm | 848.5*383.5*46mm |
| 35.4" | Wall mount | 200 ~ 400 | 1920*360 | 885.6*166mm | 924*204*50mm |
| 36.2" | Wall mount | 200 ~ 400 | 1920*540 | 885.6*249mm | 924*287*52mm |
| 36.8" | Wall mount | 200 ~ 400 | 1920*360 | 919.29*172mm | 958*210.5*52mm |
| 37.6" | Wall mount | 200 ~ 400 | 1920*540 | 919.29*258.5mm | 979.5*318.5*52mm |
| 43" | Wall mount | 200 ~ 400 | 1920*360 | 1073.78*201mm | 1112*239*52mm |
| 43" | Wall mount | 200 ~ 400 | 3840*720 | 1073.78*201mm | 1112*239*52mm |
| 43.9" | Wall mount | 200 ~ 400 | 1920*540 | 1074*302mm | 1124*352*51mm |
| 43.9" | Wall mount | 200 ~ 400 | 3840*1080 | 1074*302mm | 1124*352*51mm |
| 48.8" | Wall mount | 200 ~ 400 | 1920*360 | 1210.5*226.5mm | 1270*266*51mm |
| 48.8" | Wall mount | 200 ~ 400 | 3840*720 | 1210.5*226.5mm | 1270*266*51mm |
| 49.5" | Wall mount | 200 ~ 400 | 1920*540 | 1209.6*340mm | 1270*400*53mm |
| 49.5" | Wall mount | 200 ~ 400 | 3840*1080 | 1209.6*340mm | 1270*400*53mm |
| 58.4" | Wall mount | 200 ~ 400 | 1920*540 | 1428*401.5mm | 1492*465.5*73.5mm |
| 58.4" | Wall mount | 200 ~ 400 | 3840*1080 | 1428*401.5mm | 1492*465.5*73.5mm |
| 75" | Banner kiosk | 200 ~ 400 | 3840*1250 | 1649.66*535mm | 1712*598*47.3mm |
| 70" | Kiosk | 200 ~ 400 | 3840*1350 | 1538*541mm | 1648.48*601*30mm |
| 69.3" | Wall mount | 300 ~ 400 | 3840*1440 | 1649.5*618mm | 1688.5*657*45.5mm |
| 75" | Kiosk | 300 ~ 400 | 3840*1440 | 1649*617mm | 1787*698*42.5mm |
| 75" | IR touch kiosk | 300 ~ 400 | 3840*1440 | 1649.5*617mm | 1787*697*43mm |
| 80" | Wall mount | 200 ~ 400 | 3840*1440 | 1895*710mm | 1956*771*38mm |
| 75" | Wall mount | 200 ~ 400 | 3840*1440 | 1649.66*535mm | 1712*598*47.3mm |
| 86" | Wall mount | 200 ~ 400 | 3840*1440 | 1895*710mm | 2020*771*75.5mm |
| 86" | Wall mount | 200 ~ 400 | 3840*600 | 2158*337mm | 2200*389*66.5.5mm |
| 88" | Wall mount | 200 ~ 400 | 3840*1080 | 2158*607mm | 2200*649*66.5.5mm |

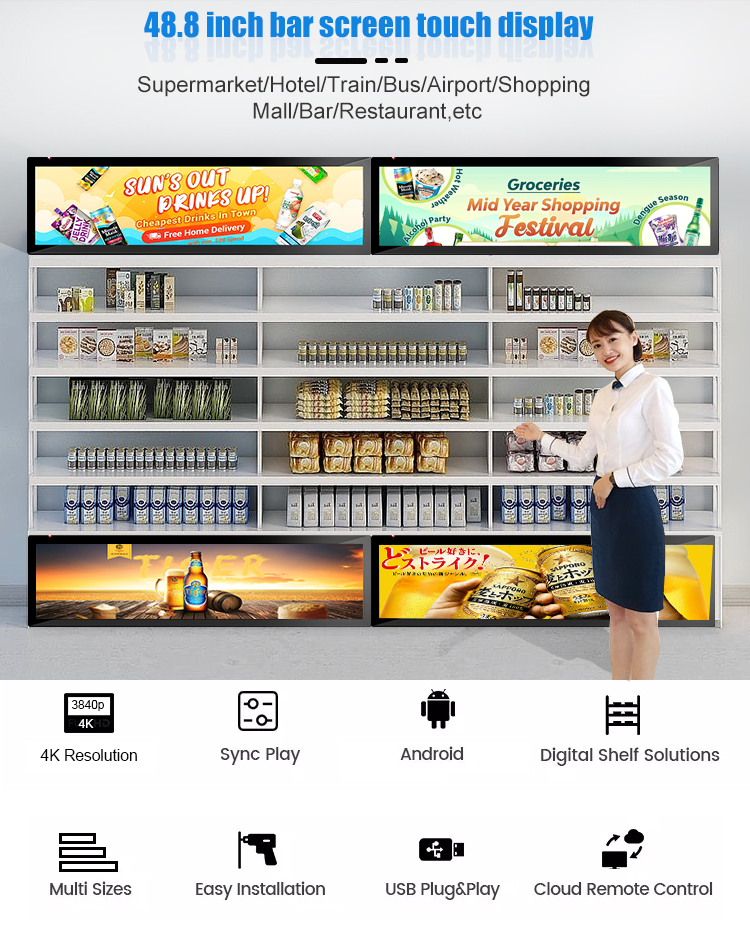

Application:
The stretched bar lcd display is widely used, including bus,
subway, airport, shopping center, security monitoring command and
dispatch center, exhibition center display system, multimedia
teaching, government agencies, school studios, video conference
systems, multi-functional exhibition halls, entertainment venues,
Restaurant, publicity display, brand store image display, TV
station, corporate exhibition hall, etc.
