    8.8" Supermarket Shelf Edge Stretched LCD Display With HDMI In

    Ask Lasest Price
    Brand Name : GENEVISION
    Model Number : MG-800
    Certification : CE, FCC, ROHS, CCC
    Price : USD50-USD100 /pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000PC per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

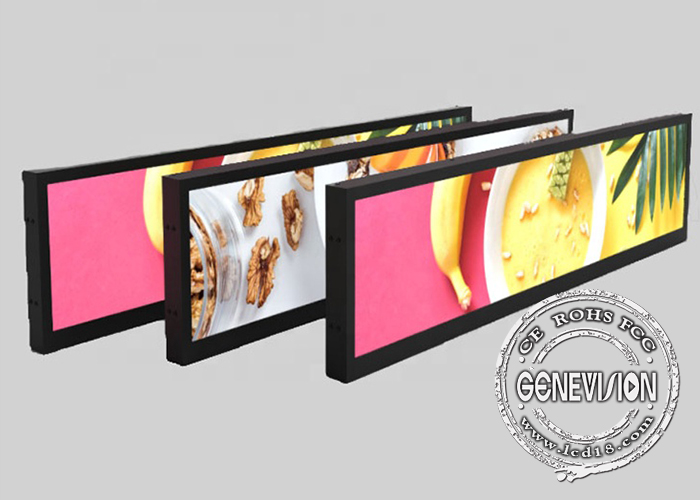

    8.8" Supermarket Shelf Edge Stretched LCD Display With HDMI In

    8.8" Supermarket Shelf Edge Stretched LCD Display Monitor with HDMI in


    Quick details of supermarket shelf edge LCD bar display monitor :


    1. 8.8 inch mini LCD bar display.

    2. 600nits high brightness.

    3. 1920*480 special resolution.

    4. 218*54mm displaying area.

    5. Can be with HDMI in monitor board.

    6. Support connect to customer's own media player box.

    7. Can be with touch screen.

    8. Color can be black or white.

    9. OEM and ODM projects welcome.


    Description of supermarket shelf edge LCD bar display monitor :


    This is min size LCD bar display for supermarket, with 600nits high brghtness to make sure character can be seeen clearly in the supermarket very bright environment, has special design for wall mounting on self edge. We have a motherboard especially designed for the this LCD stretched screen, only has one HDMI in, so customer can connect it to their own media palyer box.


    OEM and ODM projects are welcome, color also can be tailor-made, black and white are main stream in LCD industry as always.


    All material to be used are in commercial grade, support 7*24*365day working, with operating temperature 0°C to + 50°C. The sign will be connected to the bus which has a 12/24V power source as our power board support 8-36V DC input.


    As per customer's request, we built-in Windows media player motherboard, so they can install their own APP and use their own CMS. Also the lcd stretched display can be with Android system.


    Built-in 4G module can help to connect the bus digital signage to the internet, also it has WLAN and LAN.


    Specification of supermarket shelf edge LCD bar display monitor :


    Panel Specification:
    Scren size8.8 inch
    Active Display Area218*54 mm
    Visual Angle170 / 170
    PanelOriginal BOE, LG, AUO etc. panel, A Level
    Brightness600cd/m2
    Contract Ratio800:1
    Resolution Ratio1920*480
    Color Components16.7M
    Surface treatmentAnti-glare 3H
    Response Time10ms
    Power Consumption10W
    Power SupplyInput:DC 8-36V, with adaptor or AC 110-240V
    MaterialMetal
    Speaker2*10W
    Color of Shellwhite or black
    Life of Panel60000Hours
    Bare dimension(estimate)TBC
    Carton packing size(estimate)TBC
    OSD LanguageEnglish, Chinese, French, German, Italian, Spanish,Arabic
    Working Temperature0°——50°
    Storage Temperature-20°——60°
    AccessoryPower Cables, Allen key, IR Remote Controller
    Mainboard Configuration
    CPUI3
    MemoryDDR3 8G
    SSD128G
    SystemBeta Win10
    Internet connectionWifi, Lan
    InterfaceHDMI out*1, VGA ou*1, USB*4

    Also, we have other LCD bad display size on option, customzation project also welcome:


    SizeModelBrightness (nits), adjustableResolutionDisplaying area(mm)Display overall size(mm)
    19.5"Wall mount250 ~ 4001920*540476.5*134mm521.5*179.5*47.6mm
    24"Wall mount200 ~ 4001920*360597.9*111mm642*156*46.8mm
    28.1"Wall mount200 ~ 4001920*360698*131.5mm748*181.4*47.17mm
    28.6"Wall mount200 ~ 4001920*540698.4*196.43mm748*245.5*45.8mm
    34"Wall mount200 ~ 4003440*1440798.5*333.5mm848.5*383.5*46mm
    35.4"Wall mount200 ~ 4001920*360885.6*166mm924*204*50mm
    36.2"Wall mount200 ~ 4001920*540885.6*249mm924*287*52mm
    36.8"Wall mount200 ~ 4001920*360919.29*172mm958*210.5*52mm
    37.6"Wall mount200 ~ 4001920*540919.29*258.5mm979.5*318.5*52mm
    43"Wall mount200 ~ 4001920*3601073.78*201mm1112*239*52mm
    43"Wall mount200 ~ 4003840*7201073.78*201mm1112*239*52mm
    43.9"Wall mount200 ~ 4001920*5401074*302mm1124*352*51mm
    43.9"Wall mount200 ~ 4003840*10801074*302mm1124*352*51mm
    48.8"Wall mount200 ~ 4001920*3601210.5*226.5mm1270*266*51mm
    48.8"Wall mount200 ~ 4003840*7201210.5*226.5mm1270*266*51mm
    49.5"Wall mount200 ~ 4001920*5401209.6*340mm1270*400*53mm
    49.5"Wall mount200 ~ 4003840*10801209.6*340mm1270*400*53mm
    58.4"Wall mount200 ~ 4001920*5401428*401.5mm1492*465.5*73.5mm
    58.4"Wall mount200 ~ 4003840*10801428*401.5mm1492*465.5*73.5mm
    75"Banner kiosk200 ~ 4003840*12501649.66*535mm1712*598*47.3mm
    70"Kiosk200 ~ 4003840*13501538*541mm1648.48*601*30mm
    69.3"Wall mount300 ~ 4003840*14401649.5*618mm1688.5*657*45.5mm
    75"Kiosk300 ~ 4003840*14401649*617mm1787*698*42.5mm
    75"IR touch kiosk300 ~ 4003840*14401649.5*617mm1787*697*43mm
    80"Wall mount200 ~ 4003840*14401895*710mm1956*771*38mm
    75"Wall mount200 ~ 4003840*14401649.66*535mm1712*598*47.3mm
    86"Wall mount200 ~ 4003840*14401895*710mm2020*771*75.5mm
    86"Wall mount200 ~ 4003840*6002158*337mm2200*389*66.5.5mm
    88"Wall mount200 ~ 4003840*10802158*607mm2200*649*66.5.5mm

    Application of supermarket shelf edge LCD bar display monitor :


    LCD cut stretched digital signage can be widly used in supermarket shelf edge, indoor wall mount project, vehicle, also LCD stretched advertising player can be embedded into other metal shell.
