    Ip65 Waterproof Outdoor Lcd Advertising Display Open Frame Monitor Module

    Ask Lasest Price
    Brand Name : GENEVISION
    Model Number : MG-490
    Certification : CE, FCC, ROHS, CCC
    Price : USD500-USD2000/PC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000 set /month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Ip65 Waterproof Outdoor Lcd Advertising Display Open Frame Monitor Module

    IP65 Waterproof Outdoor LCD Advertising Display Open Frame Monitor Module

    Quick details of ultra thin open frame waterproof LCD advertising display module :

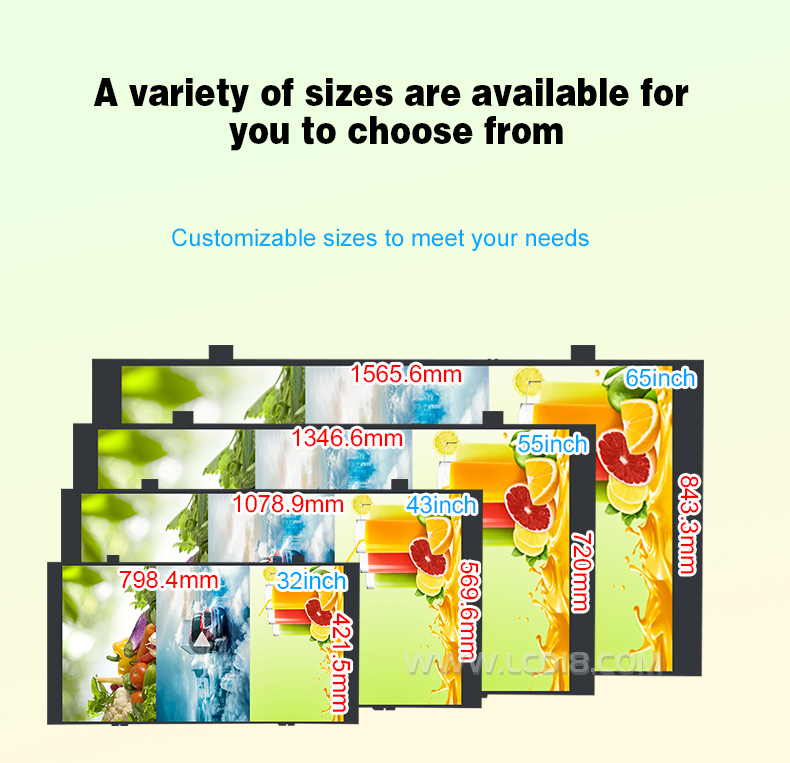

    1. Various size screen on option.

    2. IP65 waterproof outdoor digital signage standard module.

    3. Can be inbuilt into other outdoor housing.

    4. High brightness from 1500nits to 2500nits.

    5. Aluminum frame material for good heating dissipation.

    Specification of ultra thin open frame waterproof LCD advertising display module :

    Panel sizeVarious screen size on option
    Resolution1920*1080 or 3840*2160
    Panel brandBOE original panel, A level
    Display area941*529mm
    Brightness1500 ~ 2500 cd/m2
    Number of Color16.7M
    Response time8 (ms) approximately
    Contrast1200:1
    View angle178°/178°(H/V)
    Life Time> 50000 (hours)
    Power SupplyAC 110V~240V,50/60HZ
    Power Consumption330W
    Photo FormatsJPEG ,BMP ,GIF ,PNG
    Audio FormatsMP3,WAV,WMA
    Video FormatMP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V
    Shell MaterialAluminum and LED lights
    ThicknessShould be around 9cm only
    Bare diemensionTBC
    Wooden box dimensionTBC
    Touch TypeNO
    InstallationCustomer will inbuilt into their own housing
    Normal Working Temperature0°——50°
    Normal Storage Temperature-20°——60°


    Description of ultra thin open frame waterproof LCD advertising display module :

    Modular design, aluminum backplate material, full sky star backlight, ultra wide aluminum substrate, the most reliable heat dissipation method, everything is for outdoor LCD advertising machines, making outdoor advertising machines a must-have choice.

    Application of ultra thin open frame waterproof LCD advertising display module :


    This open frame outdoor IP65 waterproof LCD advertising display is designed for inbuilt into other housing for outdoor purpose, with the super thin housing design and good heating dissipation, this module can be assembled well inside any housing quite easily.
