All in one touch screen kiosk 17'' with WIN7 system

Ask Lasest Price
Brand Name :	Genevision
Certification :	CCC, RoHS, CE
Model Number :	MPC-170DT
Price :	x
Delivery Time :	10 working days after received your payment
Payment Terms :	T/T or western Union
Supply Ability :	2,000pcs per month

Add to Cart

Product Details
Company Profile

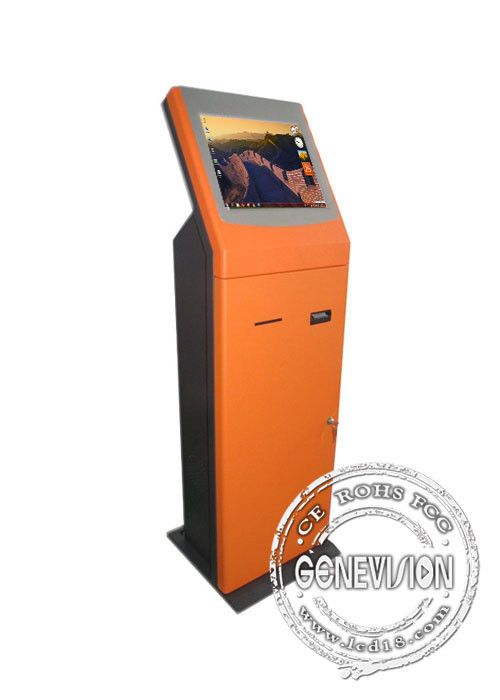

All in one touch screen kiosk 17'' with WIN7 system

All in one touch screen kiosk 17'' with WIN7 system

Product Features

1,the surface covered with toughened glass, supports full multi-touch,matching the performance of IPAD testing.

2,With the capacity of high-performance computing,vivid Images broadcast fluent,and with good design philosophy.

3,Adopt simple and delicate appearance design,Full-HD TFT colorful screen,black lacquer, adopt stylish design, with Aluminum Alloy Frame and surface brushed treatment.

4,Good dent resistance and scratch resistant,corrosion resisting and antireflection for LCD Screen.

5,Built-in TV Module,with remote control,changing the channel on your TV and computer.

6,Built-in PC, adopt mainstream configuration,please refer to the configuration list or consult us related details.

7,Built-in Touchscreen Function,adopt international advanced touchscreen technology, with high accurate touchscreen and sensitive response,Combine the function of LCD large display ,at same time,integrated handwriting unction and computer networking technology. Adopt Multi-media toolto combine word, picture and cartoon,HD video,Audio, electronic document,internet information etc,which vividly showing to the public,with an experience of an unprecedented visual impact and touching feeling.

8,High stability,Unchanged over time and circumstance,without medium,pervious to light the gender is tall,and the highest optical transmittance was up to 100%. Using Convenience and no special requirements for touchscreen.

9,Strong adaptability, no distraction for electricity,Voltage,Static electricity,which work under adverse environmental conditions

10,Long lifetime up to 50000hours,the lifetime of touchscreen is very long.no need to maintain

Technology Parameter

Item Name	Product code	The type of Touchscreen	Computer configuration
17 inch All In One card punch kiosk With Touch Screen	MPC-170DT	IR /Resist touch screen	Professional

Specification	MPC-170DT
The material of machine body	Metal profile,5MMtoughened glass
Operating temperature	Working temperature:0°C-40°C,storage temperature:-20°C-60°C,humidity:20%-80% Relative humidity
The power dissipation and power	AC90-264V 50/60 Hz・≤150W (max)
Certification	CCC,RoHS,CE
Touchscreen communication connection	USB
The connection of video signal input	DVI&VGA
Guarantee	1 year
Speaker	10Wx2
Function	Magnetic card reader/paper printer

PC Configuration

mainboard	SSD Onda B75
Processor	Inter Dual-core G2020
Ram	KMGMAX 4G
Hard Disk	ST 500G 7200 RPM Hard Drive
Power	Delta industrial PC 380W Power
Fan	Server adopt all-copper radiator double ball turbofan 4lines adjusting speed
Input port	DVI1,VGA1,PS2,network port,Audio3,on/off button,Rest Key,power switch,power input,USB 3.0 4
others	Network card:onboard 8111EL gigabit chip,keyboard and mouse: PS/2

Panel Parameters

Display	MPC-170DT
The size of screen	17 inch
display area	340mmx273mm
Dot Pitch	0.264mm(H)×0.264mm(V)
Contrast	1000:1
Max Resolution	1280 X 1024
Number of color	16.7M(8-bit)
Brightness	300cd/㎡
Analog simultaneously signal input	VGA,DVI
Scanning frequency	60HZ
Pre-installed system	WIN7
Viewing angle	89°/89°/89°/89°(Min.)(CR≥10)
Plug and play	VESA DDC2B is available

Accessory

Standard accessory	AC power line User Manual Warranty card,certification “L”model hexagon spanner,6 retaining screws for base Anti-theft lock CD-ROM version instruction
Optional accessory	Wireless mini keyboard and mouse Wireless network card
