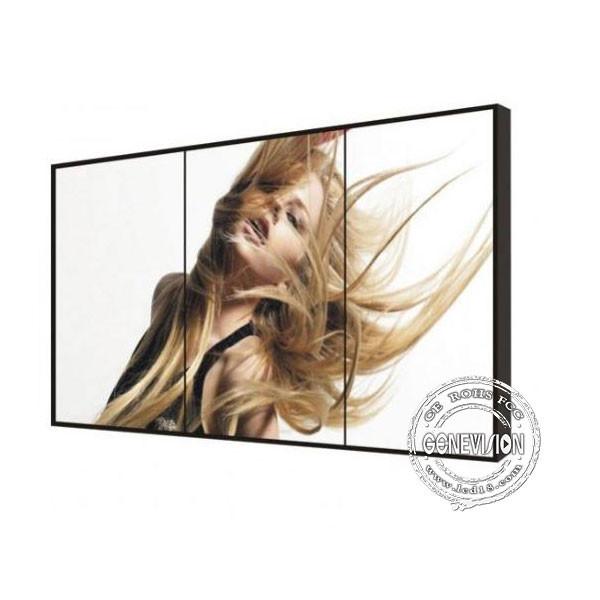

Large Digital Signage Video Wall Narrow Bezel TV , High-brightness
Features:
1. Built-in splicing module, Support splice function
2. Narrow Edge Design: Minimum 1.8mm.
3. Support matrix joint control
4. High-brightness: 700cd/sqm
5. Support a variety of signal ports
6.1080 p 60 hz, which should be more extensive
7. Power supply:Input:AC110-220V-50/60Hz
55 Inch DID,Narrow Edge LCD Video Wall,Narrow Bezel LCD TV Wall Description:
Genevision DID broadcast monitor chooses gennum project., DID
technology is a high quality image
representative of serial transmission, mainly used in some
professional field of television and radio and
television, the product supports audio embedded solution, at the
same time, supports the highest
resolution to 1080 p 60 hz, which should be more extensive.
Performance Features as follows:
Support a variety of signal ports.
Built-in splicing module, Support splice function
Support Creating one window(PIP) across the screen,roaming
service,scaling,PIP
Support matrix joint control.
Unique DNX motion supplement image processing technology,Dynamic
image without motion trail
Splicing image processing RS-232(RJ-45)loop-circuit input/output.
Input by remote control with wire,mobile receiver head.
Note:such mode does not
support1080PSF24HZ,1080I48HZ,720P24HZ,720P25HZ,720P30HZ.
Technical Parameters:
Specification/Model | MD-550 |
Panel Size | 55" LCD-DID |
Screen Aspect Ratio | 16:9 |
Visual Angle | Horizontal 178/Vertical178 |
Brightness | 700cd/sqm |
Contract Ratio | 3000:1 |
Resolution Ratio | 1920*1080 |
Color Components | 16.7M |
Response Time | 8ms |
Power Consumption of Stand-alone | 250W |
Power Supply | Input:AC110-220V-50/60Hz |
Service Life of Panel | 60000Hours |

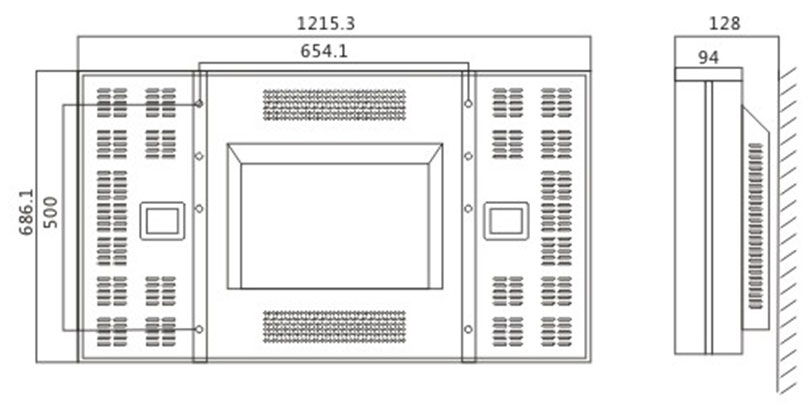

Dimension of Machine Frame(±1mm) | (Width)1215.3mm*(Height)686.1mm |
Size of Shell Frame(±1mm) | Left side3.7mm/right side1.8mm/top3.7mm/bottom1.8mm |
Panel Display Area | (Width)1213.6mm*(Height)684.4mm |
Shell Color | Black |
Installation | Wall-mounted |
Net Weight(approximate) | 33.5kg |
Working Humidity | 10%-90% |
Working Temp. | 0-60 Celsius degree |
Input Port | 3*BNC, 1*VGA, 1*DVI,1* |
VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 |
Resolution Ratio | 480I,480P,576I,720P,1080I,1080P |
Output Port | 1 Video output(BNC) |
Split Screen/PIP Mode | Two signals image or PIP |
Splice Function | Multiscreen Splice Function(image processing Function) |
Competitive Advantage:
Digital information display with LCD-DID Industrial
HD&High-brightness narrow edge LCD.Built-in splicing
module, Support splice function,support Creating one window(PIP)
across the screen,roaming service,
scaling,PIP Support matrix joint control.
Unique DNX motion supplement image processing technology, Dynamic
image without motion trail,Splicing
image processing RS-232(RJ-45)loop-circuit input/output.,Input by
remote control with wire,mobile receiver
head.

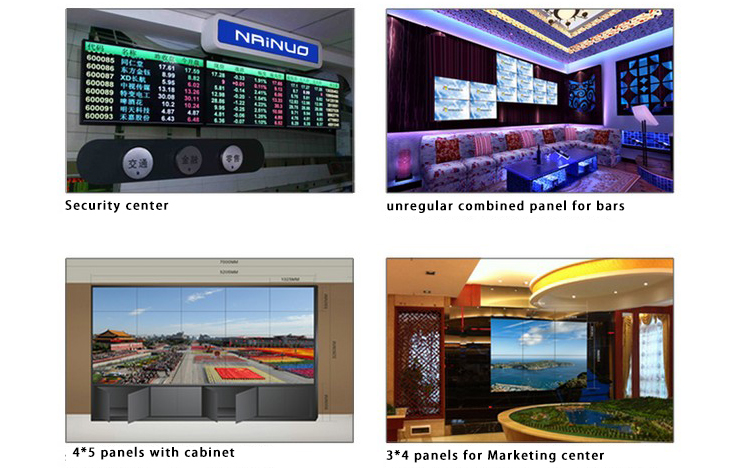

Product View:
